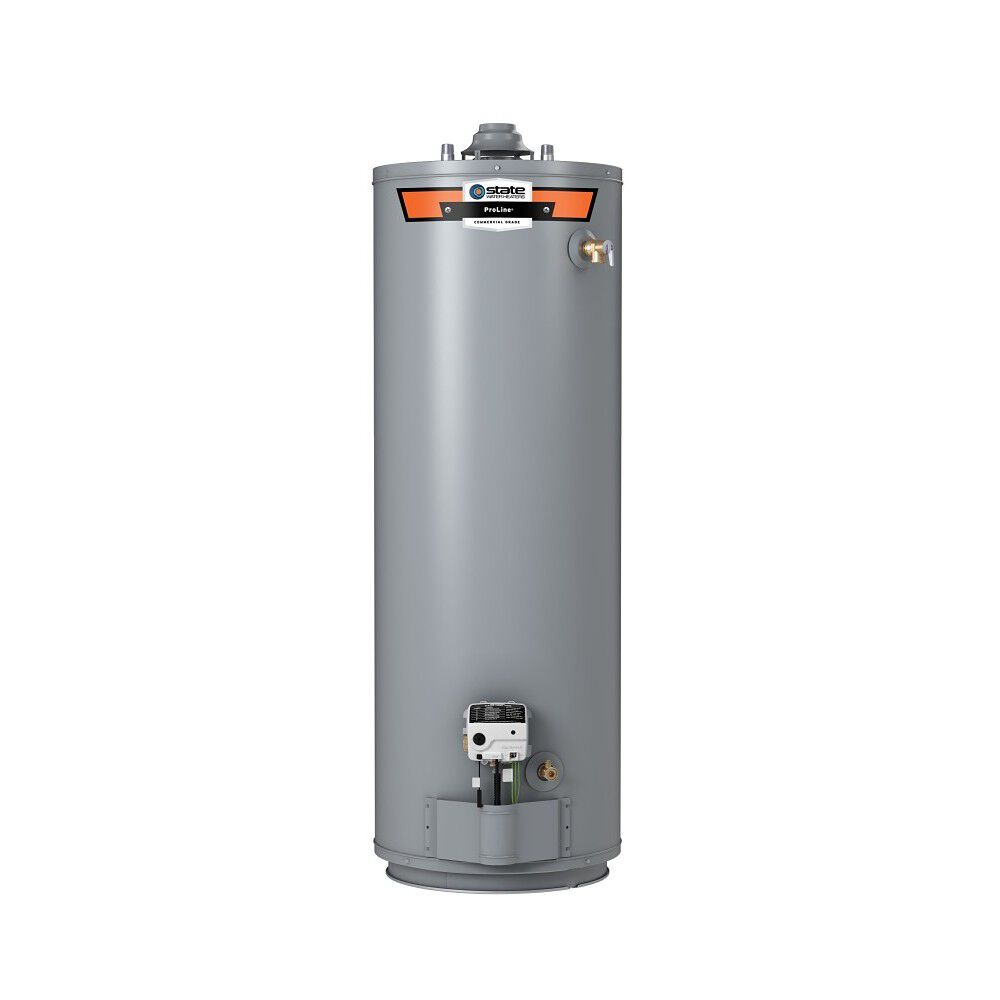

ProLine® Ultra-Low NOx 40-Gallon Atmospheric Vent Natural Gas Water Heater

Model GS6-40-BRUT 450
4.2 out of 5 Customer Rating
Capacity (Gallons)
Height Classification
UEF
Advanced Options
Limited Tank Warranty
Diameter

  • Precision Controls—Advanced electronic control system provides precise temperature control and displays operating status
  • Protective Feature—Built-in dry fire protection
  • Modulating Burner for Longer Life—Progressive modulating burner rotates elements to current load conditions providing equal wear and extending product life
  • Product Details
    • Precision Controls—Advanced electronic control system provides precise temperature control and displays operating status
    • Protective Feature—Built-in dry fire protection
    • Modulating Burner for Longer Life—Progressive modulating burner rotates elements to current load conditions providing equal wear and extending product life
    • Money Saving Modes— Economy mode reduces operating costs and saves money
    • Compatibility Options—Modbus/BACnet compatible with optional Gateway interface
    • Corrosion Protection—Permaglas Ultra Coat glass lining provides super protection against corrosion
    • Meets ASME Requirements—All models are constructed to the requirements of ASME and are available in 125, 150 and 160 psi working pressures
    • Protective Sheathing—Heavy-duty incoloy sheathing elements provide excellent protection against oxidation and scaling
    • Peace of Mind—6-year limited tank and 1-year limited parts warranty for added peace of mind

    • The ProLine® 40-Gallon Ultra-Low NOx Atmospheric Vent Natural Gas Water Heater delivers an efficient, reliable performance with an innovative design that protects against accidental ignition of flammable vapors.

      The GS6-40-BRUT features a 40-gallon (nominal) tank and a 40,000 BTU gas burner to deliver a first-hour rating of 83 gallons and a recovery rate of 42 gallons per hour. This model uses a patented Green Choice® eco-friendly burner and meets Ultra-Low NOx emission requirements.

      This ProLine® water heater features State’s advanced tank protection, including a stainless steel CoreGard™ anode rod, Blue Diamond® glass lining, and DynaClean™ automatic sediment-cleaning—designed to help protect the tank from the corrosive effects of water and extend the life of the water heater, which is backed by a 6-year limited tank and parts warranty.

      State ProLine® water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    UEF
    0.64
    Maximum BTUs
    40,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    Emissions
    Ultra-Low NOx
    First Hour Rating
    83 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    4.00
    Fuel Source
    NATURAL
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Shipping Height
    62
    Shipping Length
    19
    Shipping Width
    22
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    58.25"
    Diameter
    18"
    Shipping Weight
    125lbs
    Vent Type
    Atmospheric Vent
    Find a Replacement
    Current Product
    Option 2
    ProLine® Ultra-Low NOx 40-Gallon Atmospheric Vent Natural Gas Water Heater
    ProLine® XE Indoor 180,000 BTU Condensing Natural Gas Tankless Water Heater
    GS6-40-BRUT
    GTS-340-NIH
    Rebates up to $300 +
    Rebates up to $300 +
    Nominal Capacity
    40 Gallons
    Rated Storage Volume
    38 Gallons
    Diameter
    18"
    Width
    17.75"
    Depth
    21.75"
    11.25"
    Height
    58.25"
    23.625"
    Shipping Weight
    125lbs
    70lbs
    Power Source
    GAS
    GAS
    Limited Tank Warranty
    6 Years
    0 Years
    Limited Parts Warranty
    6 Years
    5 Years
    T&P Relief Valve
    Yes
    Water Connection Location
    TOP
    BOTTOM
    First Hour Rating
    83 Gallons
    Thermal Efficiency
    0%
    0%
